140CRA31200 SCHNEIDER Quantum RIO Station E/IP Channel 1

Description

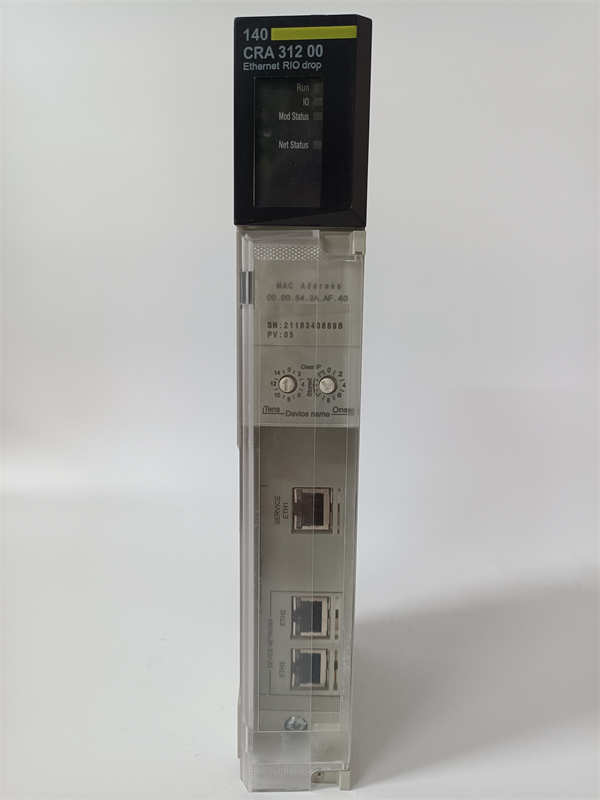

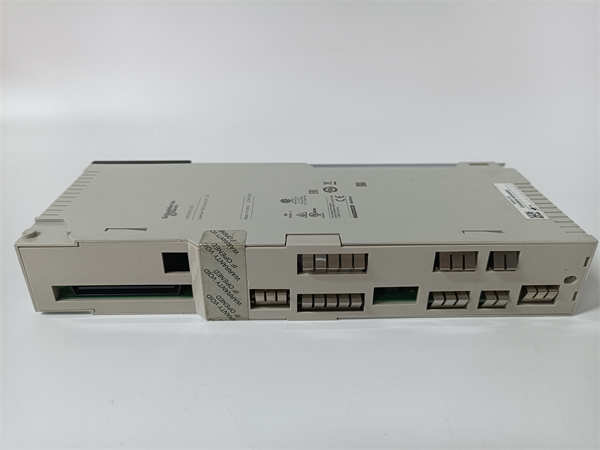

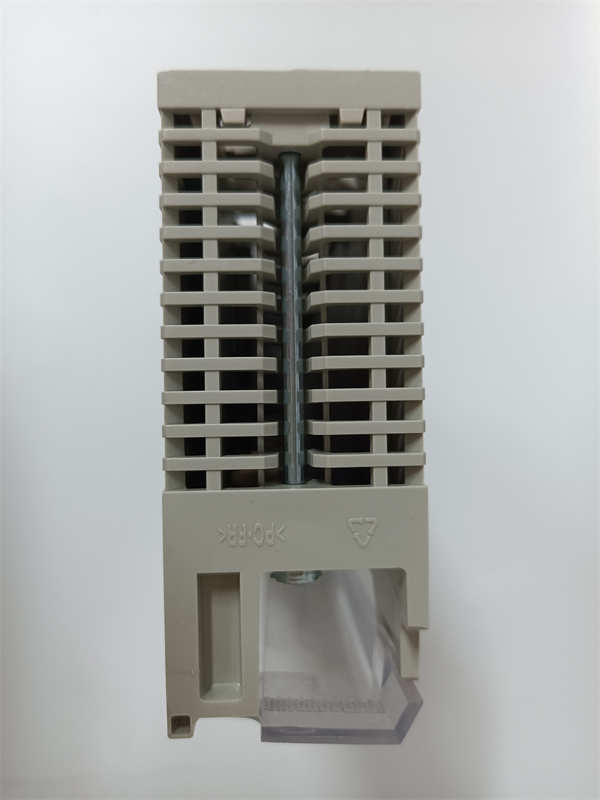

140CRA31200 SCHNEIDER Quantum RIO Station E/IP 1 Channel Information:

DESCRIPTION

140CRA31200 is an Ethernet RIO substation adapter in Schneider Electric’s Modicon Quantum series,used to connect Quantum remote I/O substations to Ethernet IP networks.It can process data from remote I/O modules,convert it into a format that complies with the Ethernet IP protocol for transmission,and also send received control commands to the corresponding I/O modules.

140CRA31200 SCHNEIDER

Product parameters

Model:140CRA31200

Number of ports:3 ports.

Communication protocol:Ethernet IP/Modbus TCP。

Communication service:Input data is collected and published to remote I/O head adapters,and output modules are updated using data received from remote I/O head adapters.

Topology structure:daisy chain loop.

Local signaling:1 green LED for RUN;1 green/red LED for module status;1 green/red LED for network communication status;One red LED is used for I/O.

Working temperature:0℃-60℃.

Storage temperature:-40℃-85℃.

Anti vibration:3.5mm constant amplitude(f=0.5-8.4Hz);1gn constant acceleration(f=8.4-150Hz).

Working altitude:2000 meters.

Relative humidity:93%.

Product specifications

Size:167mm x 50mm.

Weight:0.554kg.

IP protection level:IP20。

Overvoltage category:Class I。

series

Modicon Quantum series.

140CRA31200 SCHNEIDER

characteristic

Multi protocol support:Supports Ethernet IP and Modbus TCP protocols,and can communicate with various devices and systems.

Multiple connection methods:Ethernet IP/Modbus TCP connections can be achieved through service ports or device networks.

Local signal indication:Through LED lights of different colors and statuses,the operation,status,network communication,and I/O situation of the module can be intuitively understood.

Rotary switch configuration:The position of the Ethernet remote I/O substation on the network can be set using the rotary switch on the front of the module,with valid values ranging from 00 to 159.

Strong compatibility:compatible with 140CRP31200.

Complete product certification:UL 508,CE,C-Tick and other certifications,in compliance with EN 55011,IEC 61000-4-16,CSA C22.2 No 142 and other standards.

role

Network Connection:As an Ethernet RIO substation adapter,it provides Ethernet IP network connection for Quantum remote I/O substations,enabling I/O substations to communicate data with upper computers or other network devices.

Data Conversion and Transmission:Implement the conversion between I/O data and Ethernet IP protocol data formats to ensure accurate transmission of data between different devices and systems.

Status monitoring and indication:Through local LED indicator lights,users are provided with information on the working status and network communication status of the module,facilitating fault diagnosis and maintenance.

purpose

Mainly used in Quantum remote I/O systems to connect and exchange data between remote I/O devices and Ethernet IP networks,enabling remote I/O devices to achieve remote monitoring and control functions in industrial automation control systems.

140CRA31200 SCHNEIDER

application area

Industrial automation production line:In the automation production lines of industries such as automobile manufacturing,electronic equipment production,and food and beverage processing,it is used to connect remote I/O devices to achieve monitoring and control of the production process.

Power system:In power systems such as substations and power plants,it is used to connect remote I/O modules to achieve status monitoring,control,and protection of power equipment.

Water treatment system:Used in water treatment systems such as waterworks and sewage treatment plants to connect remote I/O devices and achieve automated control and monitoring of the water treatment process.

Petrochemical industry:used to connect remote I/O devices in oil extraction,chemical production,and other processes to achieve remote monitoring and automation control of the production process,ensuring production safety and stability.

In the field of transportation,it is used to connect remote I/O devices in transportation venues such as rail transit and airports,to achieve monitoring and management of transportation facilities,such as signal light control,access control systems,etc.
