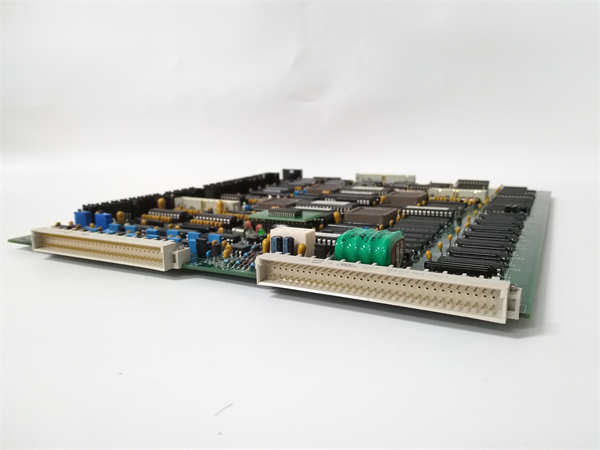

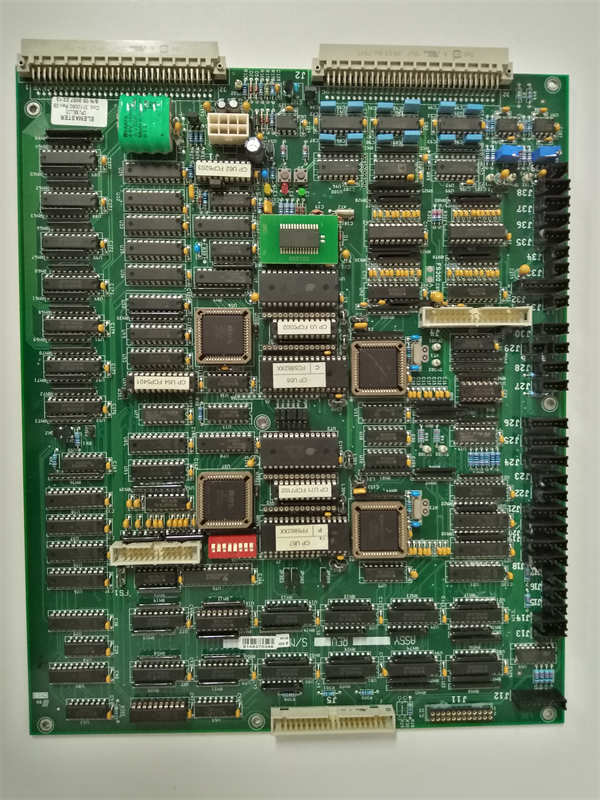

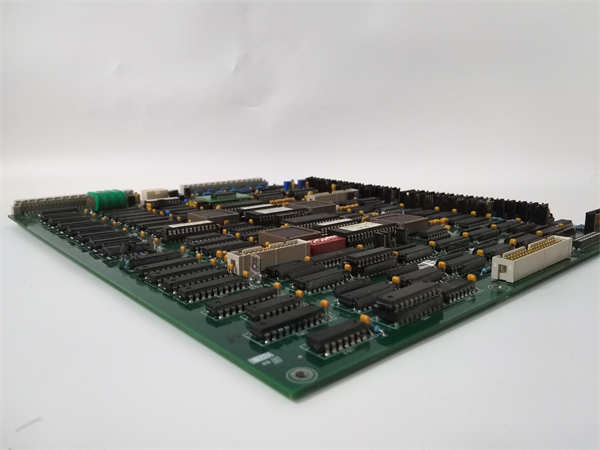

3110050 ELEMASTER encoder module

Description

ELEMASTER 3110050 encoder module details

Product overview

The ELEMASTER 3110050 encoder module is one of the key products of ELEMASTER in the field of industrial automation.It is usually used to measure and feedback the motion state of mechanical equipment,such as position,speed,Angle,etc.The encoder module converts the mechanical motion into an electrical signal for the control system(such as PLC,servo drive,etc.)to process and analyze,thus achieving accurate motion control.

3110050 ELEMASTER

Product parameters and specifications

Model:3110050

Type:Incremental encoder

Input voltage range:24V DC-240V AC

Output current:2A

Control signal:digital input/output

Communication protocol:Modbus/TCP

Operating temperature range:-20°C to+70°C

Protection class:IP65

series

The specific product family to which 3110050 belongs should be determined according to the product manual or supplier information.ELEMASTER has a wide range of products in the field of industrial automation.

trait

Common features of encoder modules include:

High precision:The ability to accurately measure mechanical motion

High reliability:Industrial grade design to ensure stable operation in harsh environments

Strong anti-interference ability:good electromagnetic compatibility

Easy to use:Usually has a simple way to install and debug

A variety of output signals are available:it can meet different application requirements

3110050 ELEMASTER

effect

The role of the encoder module is to convert the mechanical motion into an electrical signal for the control system to process and analyze,thus achieving accurate motion control.

use

Encoder modules are widely used in various industrial automation control systems,such as:

Servo control system:used to measure the rotation position and speed of the servo motor

PLC control system:Used to measure the material position and speed on the production line

CNC machine tool:used to measure the feed movement and spindle rotation of the machine tool

Robot:Used to measure the joint movement of the robot

3110050 ELEMASTER

Application field

The application areas of encoder modules are very wide,involving almost all industries requiring precise motion control,such as:

Manufacturing:Used to control various equipment on the production line

Logistics:Used to control stackers and conveyor belts in automated warehouses

Packaging:Used to control the movement of packaging machinery

Printing:Used to control the movement of printing machinery

Textile:Used to control the movement of textile machinery
