3BHE03205R0101 PCD235A101 ABB exciter control module

Description

Detailed explanation of ABB PCD235A101(3BHE032025R0101)exciter control module

Product Description

ABB PCD235A101 3BHE032025R0101 is a vibration exciter control module commonly used in ABB automation systems,especially in applications that require precise control of vibration and excitation.It may belong to ABB AC500 or other series of PLCs(Programmable Logic Controllers).

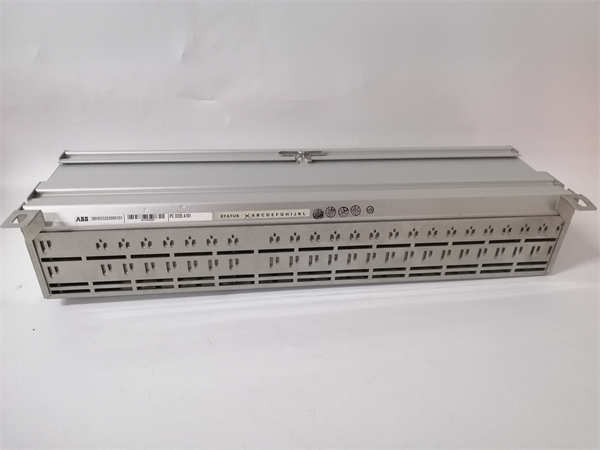

3BHE032025R0101 PCD235A101 ABB

Product parameters

Number of Control Channels:The number of exciters that a module can control.

Output signal type:The type of control signal output by the module,such as voltage,current,PWM,etc.

Output power:The maximum output power of the module determines the size of the exciter that can be driven.

Frequency range:The vibration frequency range that the module can control.

Control accuracy:The vibration control accuracy of the module.

Communication interface:The type of interface used by a module to communicate with a controller.

Power supply:The voltage and current required for the module’s power supply.

Working temperature range:The normal working environment temperature range of the module.

series

PCD235A101 may belong to ABB AC500 or other series of PLC products.ABB offers a variety of PLC products to meet the needs of different industrial applications.

features

Precise control:able to precisely control the vibration frequency,amplitude,and waveform of the exciter.

Multiple control modes:Supports multiple control modes,such as open-loop control,closed-loop control,etc.

Real time response:With fast response time,it can achieve real-time control of vibration.

High reliability:It has good anti-interference ability and stability,and can operate reliably in harsh industrial environments.

Easy to integrate:It can be easily integrated into ABB automation systems.

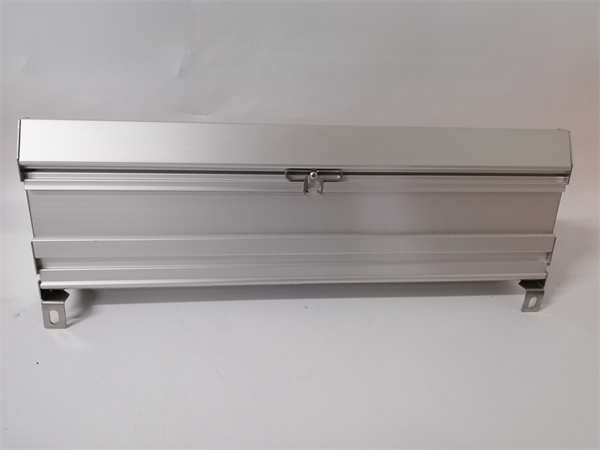

3BHE032025R0101 PCD235A101 ABB

effect

The function of the exciter control module is to receive instructions from the control system,control the vibration of the exciter,and achieve various vibration control functions.

purpose

The exciter control module is widely used in various industrial applications that require vibration control,such as:

Material transportation:Control the vibration of the vibrating conveyor to achieve precise material transportation.

Vibration screening:Control the vibration of the vibrating screen to achieve effective separation of materials.

Compaction:Control the vibration of the vibratory compactor to improve the compaction effect of the material.

Test:Control the vibration of the vibration table and simulate various vibration environments.

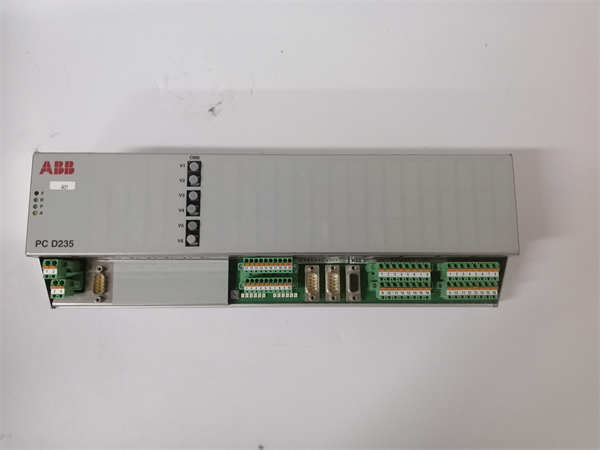

3BHE032025R0101 PCD235A101 ABB

application area

The exciter control module is suitable for various industrial fields that require vibration control,such as:

Mining:used for mineral screening,transportation,etc.

Metallurgy:Used for material handling in the smelting process.

Chemical industry:used for material mixing,reaction,etc.in chemical production.

Food:Used for material transportation,sorting,etc.in food processing.

Pharmaceutical:Used for material mixing,crushing,etc.in drug production.
