Description of ABB DO810 3BSE008510R1 digital output module
Product description
The ABB DO810 3BSE008510R1 is a digital output module for industrial automation systems and belongs to the ABB S800 I/O family.It is mainly used to convert the digital signal of the control system(such as PLC)into a switching signal,and then output to the field equipment,such as relays,solenoid valves,indicators,etc.,to achieve the control of these devices.

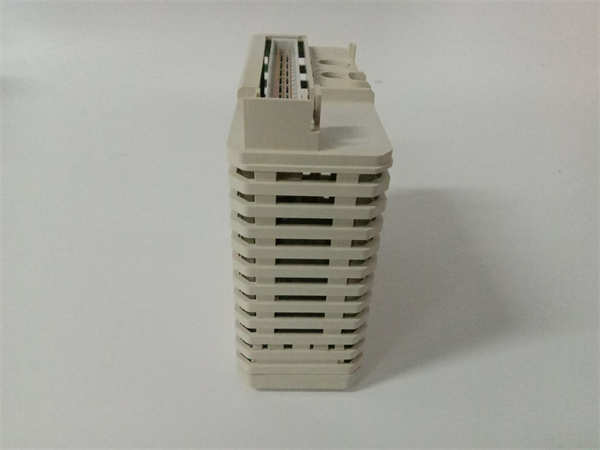

DO810 3BSE008510R1 ABB
Product parameters and specifications
Model:DO810
Order number:3BSE008510R1
Series:S800 I/O
Number of output channels:16
Output Type:Transistor(PNP)
Output voltage range:24V DC
Output current:0.5A/channel
Isolation voltage:500V AC
Operating temperature range:-40°C to+70°C
Mounting method:DIN rail mounting
series
The DO810 digital output module belongs to the ABB S800 I/O series.This series of products is ABB’s classic products,with mature technology and reliable performance,widely used in various industrial fields.S800 I/O series modules typically have the following characteristics:
Modular design:The modular design is convenient for users to configure and expand according to their needs.
Flexibility:Multiple types of input/output signals are supported to meet different application requirements.
Reliability:With industrial design and components,it has good stability and reliability,and can operate in harsh environments for a long time.
Easy to use:With a simple interface and operation mode,easy to use and integrate.

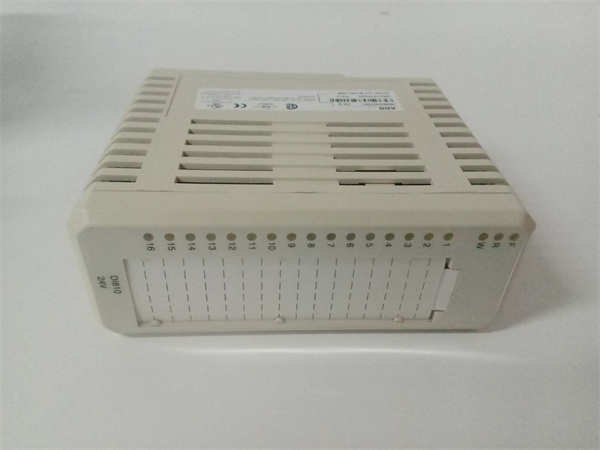

DO810 3BSE008510R1 ABB
trait
The DO810 digital output module may have the following characteristics:
High density:With 16 output channels,multiple field devices can be controlled simultaneously.
Configurability:The output type can be configured as PNP or NPN to adapt to different device requirements.
Isolation:Electrical isolation between the output channels can improve the anti-interference ability of the system.
Status indicator:Each output channel has a status indicator to facilitate users to understand the status of the output signal.
effect
The main function of the DO810 digital output module is to convert the digital signal of the control system into a switching signal,and then output it to the field equipment to achieve accurate control of these devices.
use
The DO810 digital output module is widely used in a variety of industrial sites requiring digital output,such as:
Automatic production line:used to control relays,solenoid valves,indicators and other equipment to achieve accurate control of the production process.
Process control system:used to control the on-off input of field equipment,such as valve switching,pump start and stop,etc.
Building automation system:used to control the on-off input of building equipment,such as the operating status of lighting,air conditioning,fire equipment,etc.

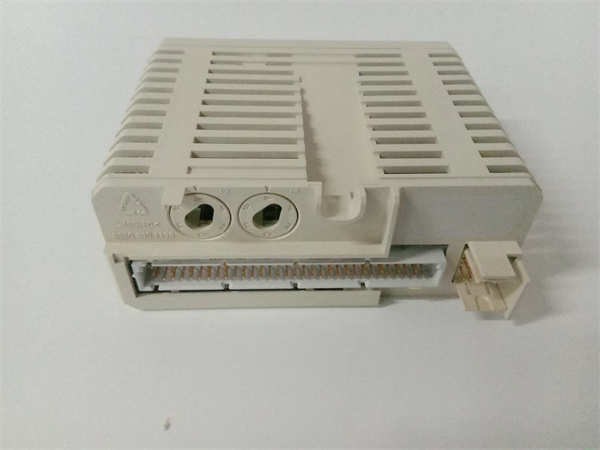

DO810 3BSE008510R1 ABB
Application field
Application areas of the DO810 digital output module include:
Manufacturing:For all types of automated production lines.
Process industry:Used in various types of process control systems.
Building automation:Used in various types of building automation systems.
