GE DS200SDCCG1AGD DS215SDCCG1AZZ01B Drive Control Board Detailed Explanation

Product Overview

The GE DS200SDCCG1AGD DS215SDCCG1AZZ01B is a drive control board in the GE Mark V Speedtronic system.They are mainly used to control and coordinate various drivers,such as motors,actuators,etc.,to achieve precise control of the process.These two products play a central role in GE’s gas turbine and steam turbine control systems.

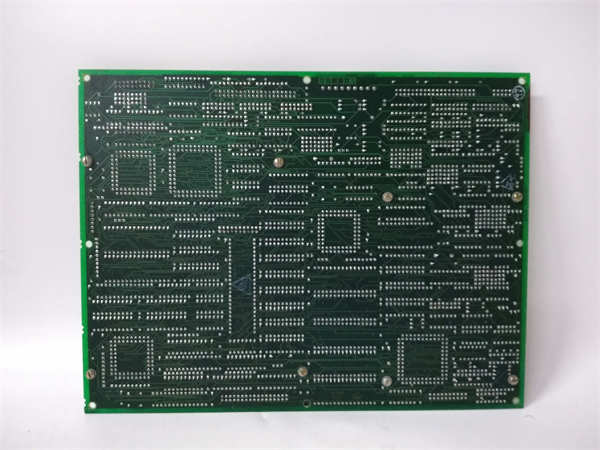

DS200SDCCG1AGD DS215SDCCG1AZZ01B GE

Product Features

High performance processor:using high-performance microprocessors to ensure real-time control and fast response.

Multi channel driver:supports multiple driver channels and can control multiple actuators simultaneously.

Flexible configuration:It can be flexibly configured according to different application requirements to adapt to various control schemes.

Standardized design:Complies with the standards of the GE Mark V system,making it easy to install and maintain.

High reliability:Using industrial grade components,it can operate stably in harsh industrial environments.

Product parameters

Manufacturer:GE board and turbine control

Series:Mark V DS200

Processor:Multiple high-performance microprocessors.

Interfaces:digital I/O interfaces,analog I/O interfaces,communication interfaces,etc.

Memory:Embedded memory used to store programs and data.

Voltage:Depending on the specific model and application environment.

Number of channels:The number of driving channels may vary.

Control accuracy:High control accuracy,capable of achieving precise control.

Product specifications

Material:High quality insulation material and metal,ensuring electrical performance and mechanical strength.

Working temperature:-20℃to+60℃.

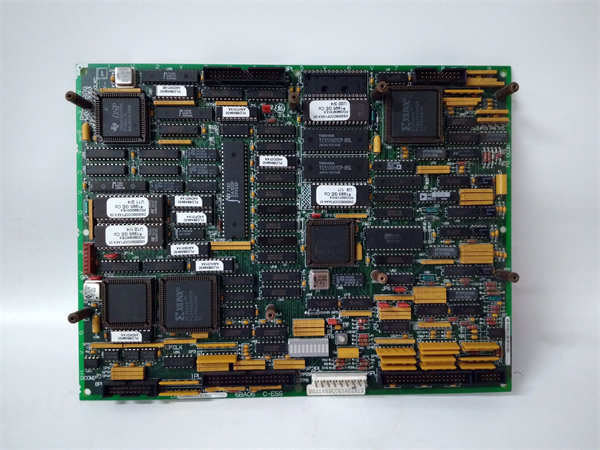

DS200SDCCG1AGD DS215SDCCG1AZZ01B GE

Product series

DS200SDCCG1AGD DS215SDCCG1AZZ01B belongs to the GE Mark V Speedtronic system series and is an important component of the system.

Product function

Drive control:Accurately control various drive devices to adjust process parameters.

Signal processing:Processing signals from sensors and actuators,and generating control signals.

Fault diagnosis:Monitor the operating status of the drive system and perform fault diagnosis.

Product Usage

Gas turbine control system:used to control parameters such as blade angle and fuel flow rate of gas turbines.

Steam turbine control system:used to control parameters such as valve opening and speed of the steam turbine.

Industrial automation systems:can also be applied in other industrial automation systems.

application area

Power industry:power plants,substations,etc.

Petrochemical industry:Control systems for petrochemical plants.

Metallurgical industry:Control system for metallurgical equipment.

DS200SDCCG1AGD DS215SDCCG1AZZ01B GE

summary

The GE DS200SDCCG1AGD DS215SDCCG1AZZ01B drive control board is the core component of the GE Mark V Speedtronic system and has a wide range of applications in the field of industrial automation.
