FBM224 P0926GG FOXBORO 4-channel isolated communication module

Description

Details of FBM224 P0926GG FOXBORO 4-channel isolated communication module:

DESCRIPTION

FBM224 P0926GG is a 4-channel isolated communication module launched by FOXBORO,serving as a Modbus slave device and Foxboro Evo™The interface between control processors in process automation systems or I/A Series systems enables devices that support RS-232,RS-422,or RS-485 communication interface standards and Modbus protocol in RTU mode to interact with Foxboro systems for data exchange.

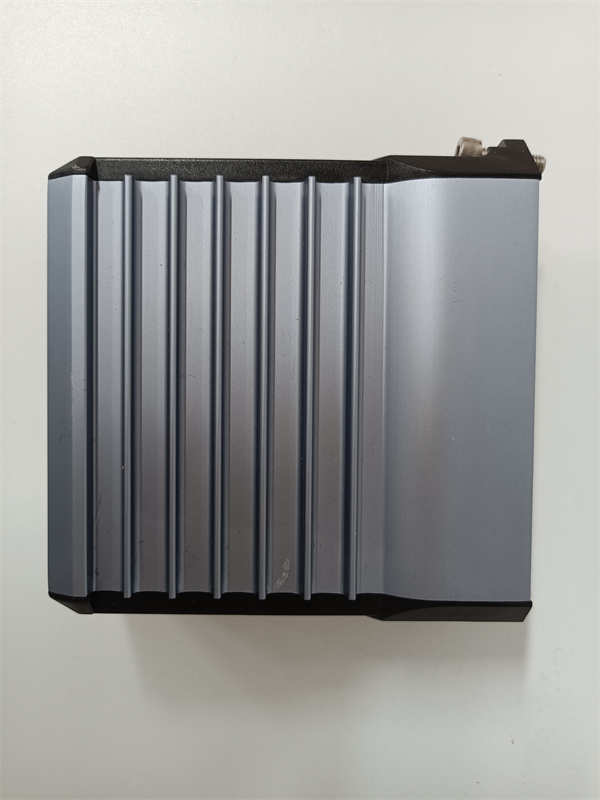

FBM224 P0926GG FOXBORO

Product parameters

Communication interface:Supports RS-232,RS-422,RS-485 communication interface standards.

Communication protocol:Following Modbus protocol.

Scanning rate:The default value is 500ms,ranging from 500 milliseconds to 255 seconds.

Device access quantity:Each FBM224 can access up to 64 devices.

Number of DCI data connections:Up to 2000 distributed control interface(DCI)data can be connected from the connected Foxboro control station.

Product specifications

Shell material:extruded aluminum shell.

Protection level:It can provide varying degrees of environmental protection,up to the harsh environment specified in ISA standard S71.04.

series

Belonging to FOXBORO’s I/A Series or Foxboro Evo related series.

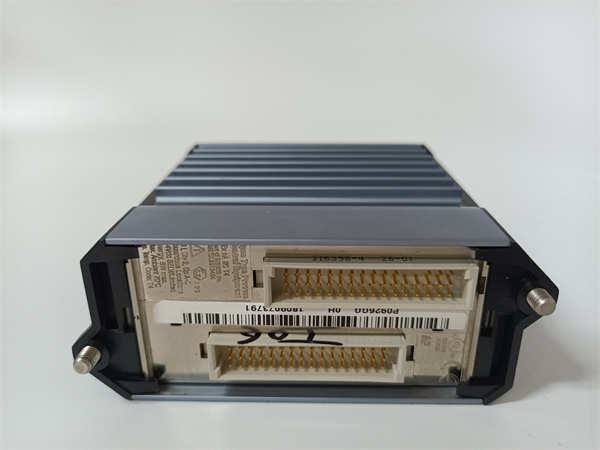

FBM224 P0926GG FOXBORO

characteristic

Protocol standard:Compliant with Modbus protocol,ensuring compatibility with numerous devices that support the protocol.

Optional interfaces:RS-232,RS-422,or RS-485 communication interface standards can be selected to meet the communication needs of different field devices.

Integration capability:able to integrate Modbus slave device data into Foxboro control database.

Convenient configuration:Provides a configuration tool for Windows or Solaris versions,which can easily set port communication parameters and slave device file transaction specifications.

Redundant communication:It can accept communication from any path(A or B)of the redundant 2Mbps fieldbus,improving the reliability of communication.

Installation features:Equipped with relevant terminal components(TA),suitable for installation in Class 1,Zone 2 and Zone 2 locations;When disassembling or replacing modules,there is no need to remove the terminal cables,power or communication cables of the on-site equipment.

role

Communication connection:Implement communication connection between Modbus slave devices and Foxboro system control processors,allowing on-site devices to access Foxboro automation control systems.

Data Conversion and Transmission:Convert and transmit data formats between different devices and systems to ensure accurate data exchange,enabling the Foxboro system to read and write data from connected devices.

Isolation protection:The 4-channel isolation design can effectively prevent signal interference between different channels and the impact of external interference on the system,improving system stability and anti-interference ability.

purpose

It is mainly used in industrial automation control systems to achieve data communication and interaction between FOXBORO systems and Modbus slave devices,facilitating monitoring,data acquisition,and control instruction issuance of on-site devices.

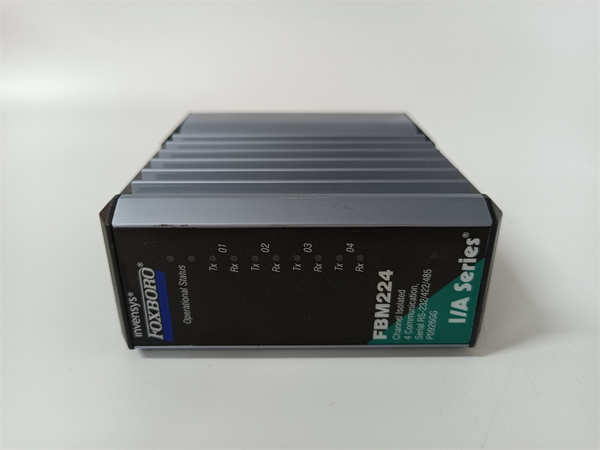

FBM224 P0926GG FOXBORO

application area

In the oil and gas industry,various Modbus devices such as flow sensors and pressure transmitters are connected to achieve data acquisition and remote control in oil well monitoring,pipeline transportation,and other aspects.

Chemical industry:used for reactor control,material transportation monitoring,etc.in the chemical production process,connecting relevant instruments and equipment,and transmitting data to the FOXBORO system for centralized management and control.

Power industry:In scenarios such as substations and power plants,communicate with Modbus devices such as power monitoring equipment and smart meters to collect and analyze power data,as well as remotely control equipment.

The steel metallurgy industry:In the control of blast furnaces and steel rolling production lines in steel production,various on-site equipment is connected to achieve automated control and data monitoring of the production process.

Water treatment industry:In waterworks and sewage treatment plants,it is connected to water pumps,flow meters,water quality monitoring equipment,etc.to achieve monitoring and automation control of the water treatment process.
