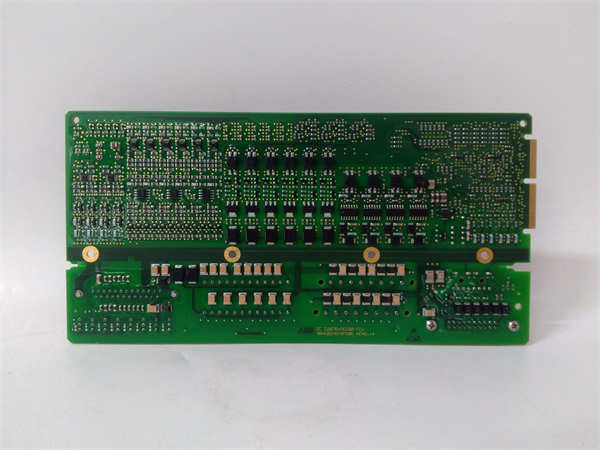

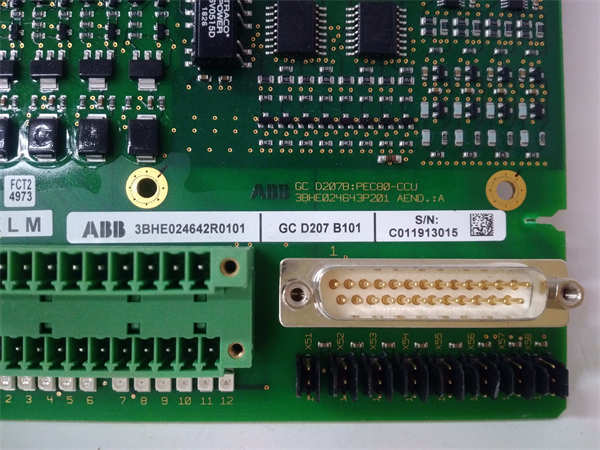

GCD207B101 3BHE024642R0101 ABB inverter driver board

Description

ABB GCD207B101 3BHE024642R0101 Drive board Details:

Product description

ABB GCD207B101 3BHE024642R0101 is a drive board of the ABB ACS880 series.It is one of the core components of the frequency converter,and its main role is:

Receive control signals:Receive control signals from the inverter control unit,which are usually processed PWM(pulse width modulation)signals.

Signal amplification and drive:The control signal is amplified and processed to generate the drive signal that can drive the IGBT module.The IGBT(insulated gate bipolar transistor)is the core component of the power output of the inverter,which is responsible for converting direct current into alternating current of variable frequency,thus controlling the speed and torque of the motor.

Protection function:The drive board usually also integrates some protection functions,such as overcurrent protection,short circuit protection,etc.,to ensure the safe operation of the inverter and the motor.

GCD207B101 3BHE024642R0101 ABB

Product parameter

Input signal type:The type of input signal that the driver board can receive,usually PWM signal.

Output signal type:The type of output signal provided by the driver board to drive the gate of the IGBT module.

Voltage/current range:The input voltage/current range of the driver board,and the output voltage/current size.

Response time:the response speed of the drive board to the change of the input signal,which directly affects the control performance of the inverter.

Operating temperature:The normal operating temperature range of the drive board.

Product specification

Interface type:Electrical interface type,such as wiring terminals and connectors,used to connect control units,IGBT modules,and other external devices.

Protection level:The protection level of the circuit board,such as IP20,indicates the protection ability to dust and other external environments.

series

The GCD207B101 belongs to the ABB ACS880 inverter series.The ABB ACS880 inverter is ABB’s flagship product,featuring high performance,high reliability and flexibility,and is widely used in various industrial automation fields.

GCD207B101 3BHE024642R0101 ABB

trait

ABB inverter drive boards usually have the following characteristics:

High reliability:With high-quality electronic components and advanced circuit design,it has high reliability and stability,and can operate for a long time in harsh industrial environments.

Precise control:The switch of the IGBT module can be precisely controlled,thus achieving precise control of the motor speed and torque.

Fast response:with fast response time,it can respond to the change of the control signal in time and improve the dynamic performance of the inverter.

Perfect protection function:Integrate a variety of protection functions,such as overcurrent protection,short circuit protection,etc.,to ensure the safe operation of the inverter and the motor.

effect

The main role of the drive board of the inverter is:

Signal conversion:The control signal from the control unit is converted to the driving signal of the IGBT module.

Power amplification:Power amplification of the control signal to meet the driving requirements of the IGBT module.

Protection function:Provide overcurrent,short circuit and other protection functions to ensure the safe operation of the inverter and the motor.

use

The drive board is one of the core components of the inverter,which works with IGBT module,control unit and other components to realize the control of the motor.Therefore,it is widely used in various industrial automation fields,such as:

Power industry:Motors used to control fans,pumps and other equipment.

Metallurgical industry:Motors used to control rolling mills,cranes and other equipment.

Petrochemicals:Motors used to control pumps,compressors and other equipment.

Manufacturing:Used to control a variety of motors on the production line,such as conveyor belt motors,robot motors,etc.

GCD207B101 3BHE024642R0101 ABB

Application field

GCD207B101 is mainly used in the following industrial areas requiring motor control:

Industrial automation:for all kinds of automatic production lines,mechanical equipment motor control.

Process control:used for motor control of various industrial processes,such as temperature control,pressure control,flow control,etc.

Servo control:Used in situations requiring high-precision position control,such as robots,CNC machine tools,etc.
