IS220PPRFH1B 336A5026ADP2 GE PROFIBUS Main Gateway Module

Description

Detailed information of IS220PPRFH1B 336A5026ADP2 GE PROFIBUS main gateway module:

DESCRIPTION

IS220PPRFH1B 336A5026ADP2 is a PROFIBUS master gateway I/O module in the Mark VIe series developed by GE.This module consists of a processor board shared by all Mark VIe distributed I/O modules,as well as an acquisition carrier board equipped with a COM-C PROFIBUS communication module provided by Hilscher GmbH.It can map the Mark VIe controller on the I/O Ethernet to the I/O of PROFIBUS slave devices,playing a role in connecting different devices and systems,realizing data exchange and control in industrial automation systems.

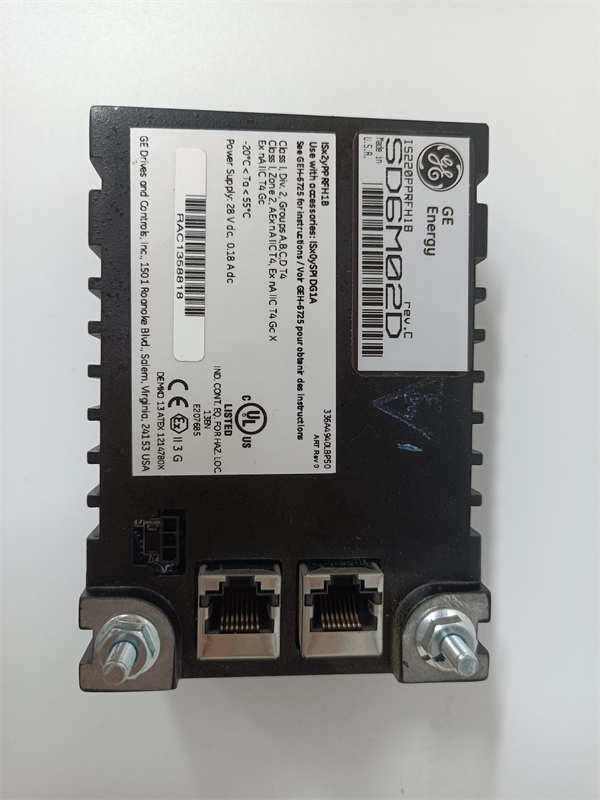

IS220PPRFH1B 336A5026ADP2 GE

Product parameters

Power supply:27.4-28.6 volts DC

PROFIBUS master station type:DPV0 Class 1 master station

PROFIBUS connection:DE-9 D-sub RS-485 interface connector

Number of slave stations:Supports up to 125 slave stations,each capable of processing 255 bytes of input and output

I/O throughput:Half Boolean and Half Analog,500 inputs and 500 outputs,40ms frame rate

Transmission rate:9.6KBaud to 12MBaud

Memory:256MB DDR SDRAM

microprocessor:Power QUICC II Pro Freescale，Operating frequency 667MHz

Working temperature:0 to+65°C

Product specifications

Size and weight:approximately 2 pounds

Part number:IS220PPRFH1B

Interface type:Equipped with DE-9 D-sub RS-485 interface for PROFIBUS connection and multiple Ethernet ports for connecting with other devices.

series

GE Mark VIe series.

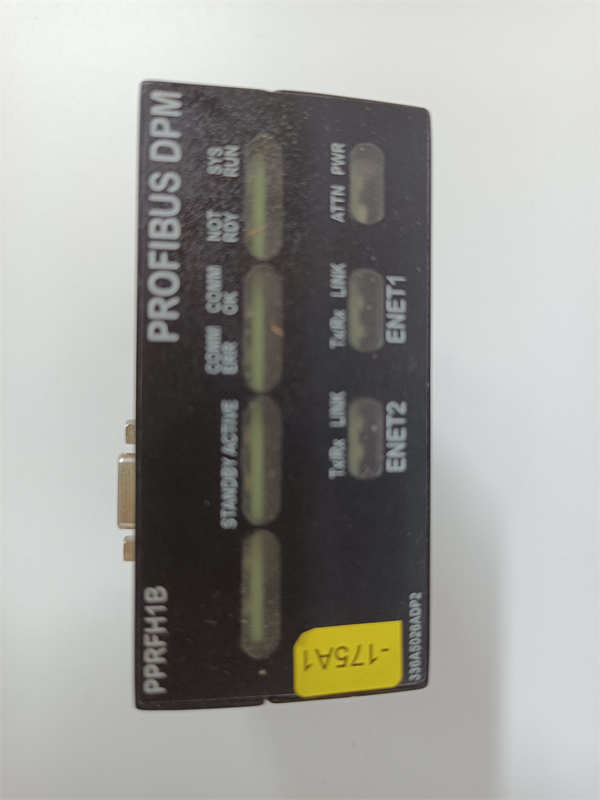

IS220PPRFH1B 336A5026ADP2 GE

characteristic

Communication capability:As a PROFIBUS DP master,it can communicate with numerous slave devices and achieve data exchange.

Redundancy design:Supports multiple redundancy options,including single I/O pack single connection,single I/O pack dual Ethernet connection,hot backup Ethernet connection,etc.,to improve system reliability.

Diagnostic function:The LED indicator lights on the module can provide visual diagnosis,making it convenient for users to quickly understand the working status of the module.

Strong compatibility:It can work well with other components of the GE Mark VIe series and is paired with the attached ID terminal board IS200SPIDG1A for use.

role

Protocol conversion:Implement the conversion between PROFIBUS protocol and other protocols,enabling devices with different protocols to communicate with each other.

Data exchange:Transmit and exchange data between the Mark VIe controller and PROFIBUS slave devices to ensure that all parts of the system work together.

System expansion:It is convenient to expand the system scale by connecting more PROFIBUS slave devices and increasing the number of control and monitoring points in the system.

purpose

Used to build industrial automation control systems such as GE distributed turbine control systems,achieving efficient communication and data exchange between devices,facilitating precise control and monitoring of industrial processes.

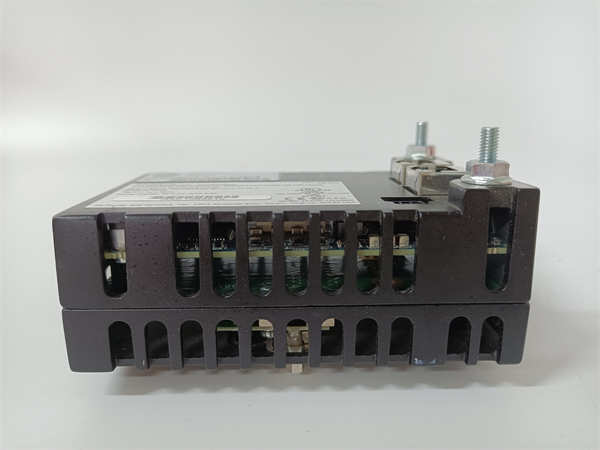

IS220PPRFH1B 336A5026ADP2 GE

application area

In the field of energy,such as the turbine control system of power plants,connecting various sensors,actuators and other equipment to achieve real-time monitoring and control of the operating status of turbines.

Manufacturing industry:In production lines such as automobile manufacturing and mechanical processing,PLC,robots,sensors and other equipment are connected to achieve automated control and monitoring of the production process,improve production efficiency and product quality.

Chemical industry:used for various control links in the chemical production process,connecting on-site instruments,controllers and other equipment to ensure the safe,stable and efficient operation of the production process.

Transportation:In the automated control system of transportation hubs such as rail transit and airports,various devices are connected to achieve centralized control and management of transportation facilities.
