IS220PRTDH1A 363A4940CSP6 GE Resistance Temperature Device

Description

GE IS220PRTDH1A 363A4940CSP6 Resistance Temperature Device Detailed Explanation

Product Overview

GE IS220PRTDH1A 363A4940CSP6 is a resistance temperature device(RTD)input module manufactured by GE.This module is part of GE’s Mark VIe Speedtronic system,which is one of the final available Speedtronic systems.

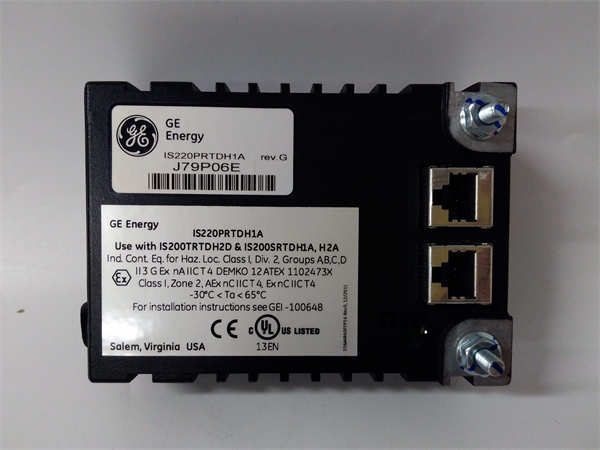

IS220PRTDH1A 363A4940CSP6 GE

Product Features

High precision measurement:capable of accurately measuring the resistance changes of RTD sensors,thereby accurately reflecting temperature.

Multi channel:Provides multiple channels that can simultaneously connect multiple RTD sensors to achieve multi-point temperature measurement.

Strong anti-interference ability:It has good anti-interference ability to ensure the accuracy of measurement data.

Modular design:easy to install and maintain.

Good compatibility:compatible with GE’s Mark VIe Speedtronic system.

Product parameters and specifications

model:IS220PRTDH1A 363A4940CSP6

Brand:GE

manufacturer:GE Boards&Turbine Control

Series:Mark VI IS200

Part/Model:IS220PRTDH1A

Series:Mark VIe

Product type:RTD input module

Number of channels:8 channels

Input module country of origin:United States(USA)

Input signal:RTD resistance signal

Output signal:digital signal,can be connected to PLC and other controllers

Working temperature:-20°C~+70°C

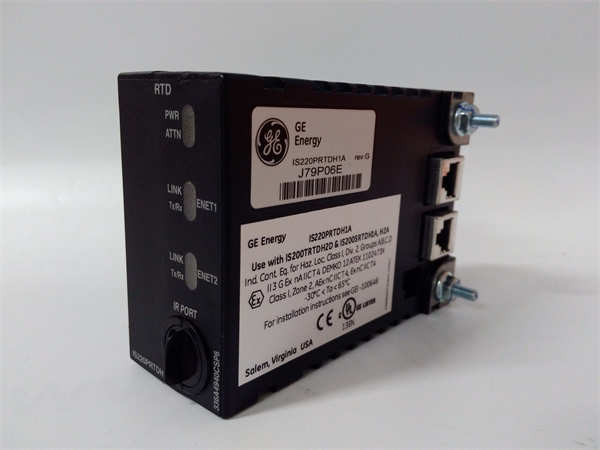

IS220PRTDH1A 363A4940CSP6 GE

effect

Signal acquisition:Collect resistance signals output by RTD sensors.

Signal conversion:Convert RTD resistance signals into standard digital signals.

Data transmission:Transmit digital signals to controllers such as PLCs.

purpose

Temperature measurement:mainly used for temperature measurement in industrial production processes,such as temperature monitoring of equipment such as boilers and steam turbines.

Process control:As a part of the process control system,it measures and controls temperature.

Data collection:Collect and transmit temperature data to the upper computer for data analysis and processing.

application area

Power industry:power plants,substations

Petrochemical industry:refineries,chemical plants

Metallurgical industry:Steel mills

Paper industry:Paper mills

Series Introduction

IS220PRTDH1A belongs to GE’s Mark VI IS200 series.This series of products is an I/O module provided by GE for its Speedtronic system,mainly used to collect analog and digital signals from various industrial sites and transmit them to the controller.

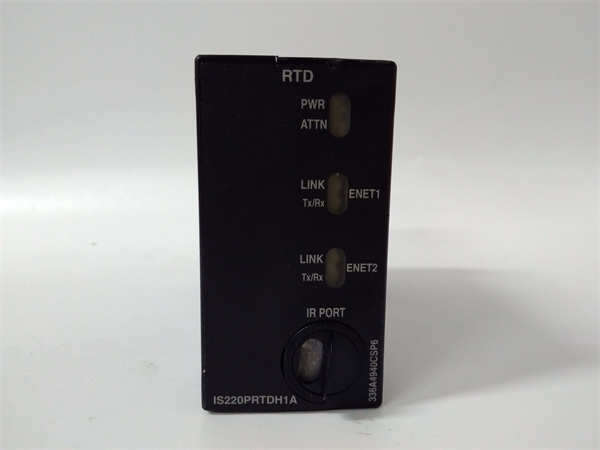

IS220PRTDH1A 363A4940CSP6 GE

summary

GE IS220PRTDH1A is a high-performance RTD input module suitable for temperature measurement in various industrial environments.Its high precision,multi-channel,anti-interference and other characteristics make it an important component of the industrial automation field.
