P0916PH P0916AL FOXBORO programmable logic controller module with DIN mounting base

Description

P0916PH P0916AL FOXBORO programmable logic controller module with DIN mounting base information:

DESCRIPTION

P0916PH P0916AL is a programmable logic controller module launched by FOXBORO company.It is usually used in conjunction with a DIN mounting base and can be easily installed on standard DIN rails to provide logic control functions for industrial automation control systems.This module can receive input signals from sensors and other devices,perform logical operations and processing according to pre written programs,and then output control signals to the executing mechanism to achieve precise control of industrial processes.

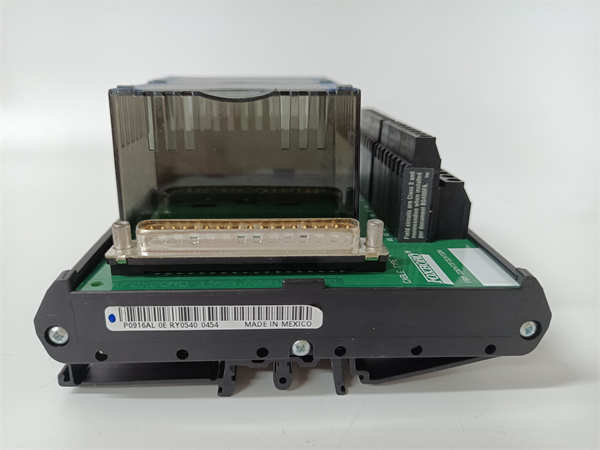

P0916PH P0916AL FOXBORO

Product parameters

model:P0916PH P0916AL

manufacturer:FOXBORO

Power supply voltage:Generally supports 24V DC power supply,with a certain allowable voltage fluctuation range,such as±10%.

Input/output points:Depending on the specific model,there may be different input/output configurations such as 8 points,16 points,or 32 points,which can meet the needs of different scale control tasks.

Input signal type:Can receive switch input signals,such as on/off signals from buttons,limit switches,etc;It may also support analog input signals,such as 4-20mA current signals or 0-10V voltage signals from temperature and pressure sensors.

Output signal types:usually include relay output,transistor output,or thyristor output,which can be used to control equipment such as contactors,solenoid valves,indicator lights,etc.

Working temperature range:generally 0℃-55℃or-20℃-70℃,suitable for different industrial environment temperatures.

Storage temperature range:usually-40℃-85℃.

Product specifications

Size:With a DIN mounting base,the overall size is compact,with a width generally ranging from 45mm to 90mm.The height and depth may vary depending on the specific module design,making it easy to install inside the control cabinet.

Weight:1kg.

Protection level:May reach IP20 or higher protection level.

series

The specific PLC module series products belonging to FOXBORO company may have certain compatibility and scalability with other modules in the same series in terms of functionality and performance.

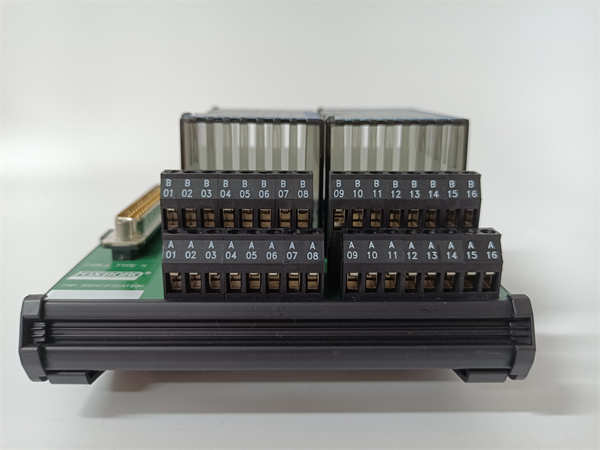

P0916PH P0916AL FOXBORO

characteristic

High reliability:using industrial grade electronic components and manufacturing processes,undergoing strict quality testing,it has strong anti-interference ability,long mean time between failures,and can operate stably in harsh industrial environments.

Flexible programming:Supports multiple programming languages such as ladder diagrams,instruction lists,functional block diagrams,etc.,making it convenient for engineers with different professional backgrounds to program and debug.

Good scalability:By adding expansion modules,the input and output points,communication interfaces,and other functions can be expanded to meet industrial control needs of different scales and complexities.

Strong communication function:It has multiple communication interfaces,such as RS485,Ethernet,etc.,and can communicate with other devices such as upper computers,touch screens,smart meters,etc.to achieve data transmission and sharing.

role

Logical control:To control various logical relationships in the industrial production process,such as sequential control,conditional judgment,timed counting,etc.,to ensure that the production process proceeds according to the predetermined process.

Data processing:Performing operations,processing,and analysis on various input data,such as data acquisition,filtering,conversion,etc.,to provide a basis for control decisions.

Signal conversion:Convert different types of input signals into processable digital signals,and convert the processed digital signals into corresponding output signals to drive external devices.

purpose

Used to build various industrial automation control systems,achieve automation control and monitoring of production equipment,production lines,process flows,etc.,and can write corresponding control programs according to different production needs to achieve intelligent production management.

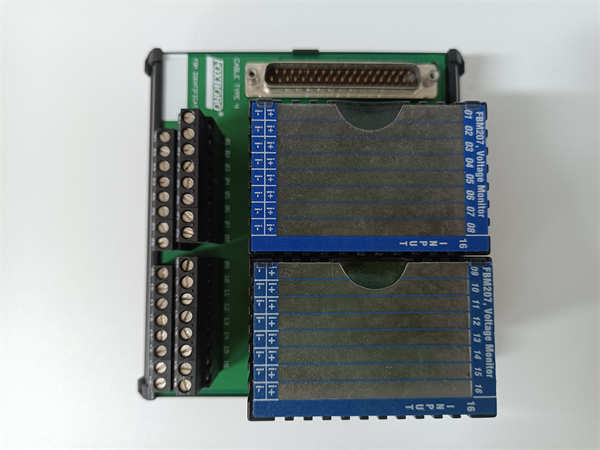

P0916PH P0916AL FOXBORO

application area

Petrochemical industry:used for controlling reaction vessels,material transportation,temperature and pressure in petroleum refining and chemical production processes.

Power industry:In the control of auxiliary equipment in power plants and automation systems in substations,it realizes the start stop control and status monitoring of equipment.

Metallurgical industry:applied to blast furnace control,steel rolling production line control,material batching control,etc.in steel production.

Water treatment industry:used for water treatment process control in sewage treatment plants and waterworks,such as pump start stop control,valve switch control,water quality monitoring,etc.

Food and beverage industry:Automated control of production equipment is achieved on food processing,beverage filling and other production lines to ensure product quality and production efficiency.
