ICS Triplex T8403 Trusted TMR 24V DC Digital Input Module
Product Overview
ICS Triplex T8403 is a highly reliable digital input module designed specifically for ICS Triplex TMR systems.It is capable of processing digital signals from 40 field devices and ensuring data reliability through a Triple Modular Redundancy(TMR)architecture.

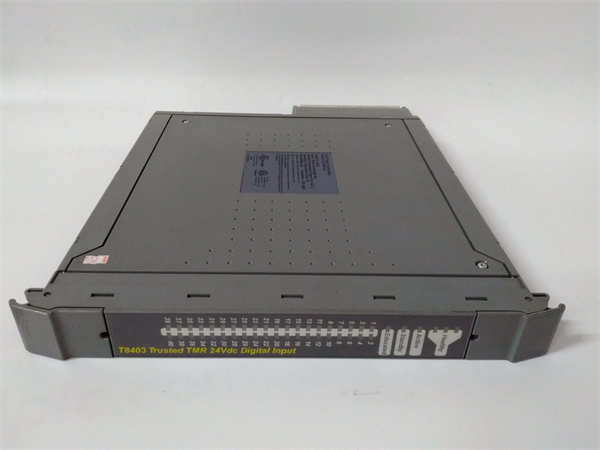

T8403 ICS TRIPLEX
main features
40 digital inputs:Each module can process 40 digital input signals.
Triple module redundancy:Adopting TMR architecture to improve system reliability.
Sigma Delta input circuit:high-precision measurement of input voltage.
Automatic diagnosis:It has comprehensive automatic diagnosis and self checking functions.
Flexible configuration:It can be flexibly configured according to different application requirements.
Product parameters
model:T8403
Input voltage:24V DC
Number of input channels:40
Working temperature:0℃~55℃
Relative humidity:5%~95%RH
Product specifications
Size:16cm x 16cm x 12cm
Weight:0.8kg
Installation method:Insert into T8100 chassis
Product series
T8403 belongs to the Trusted TMR system series of ICS Triplex.

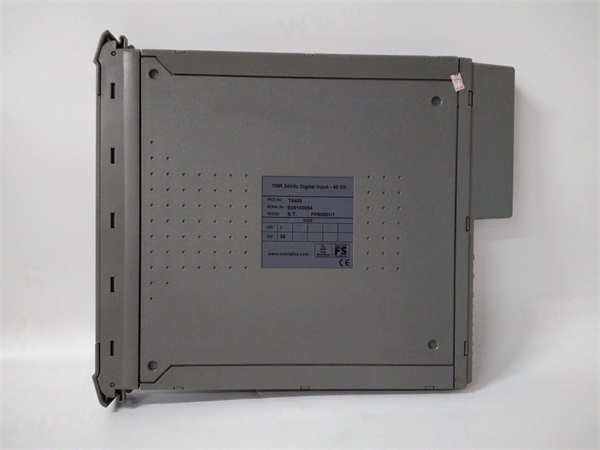

T8403 ICS TRIPLEX
Product function
Data collection:Collecting digital signals from on-site devices.
Signal processing:Processing the collected digital signals.
Data transmission:Transfer the processed data to the TMR processor.
Product Usage
Industrial automation:used in industrial control systems that require high reliability.
Process control:Monitor process variables such as switch status,sensor signals,etc.
Security system:used to build security systems and monitor security status.
application area
Petrochemical industry:process control,safety systems
Electricity:Control of power plants and substations
Metallurgy:blast furnace control,steel rolling process control
working principle
The T8403 module samples each input channel through a Sigma Delta input circuit,and compares and votes on the sampling results through a TMR architecture to ensure data accuracy.

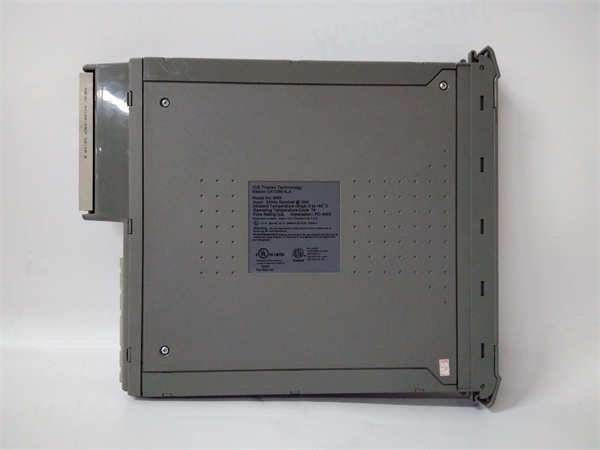

T8403 ICS TRIPLEX
summary
ICS Triplex T8403 is a highly reliable digital input module suitable for industrial control systems that require high data reliability.It can process a large number of digital input signals and ensure data accuracy through TMR architecture.
