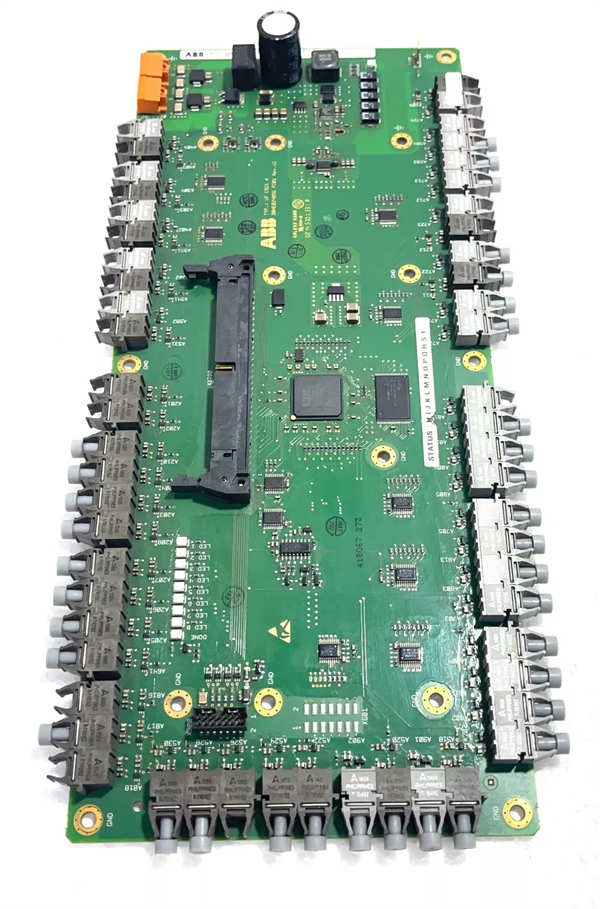

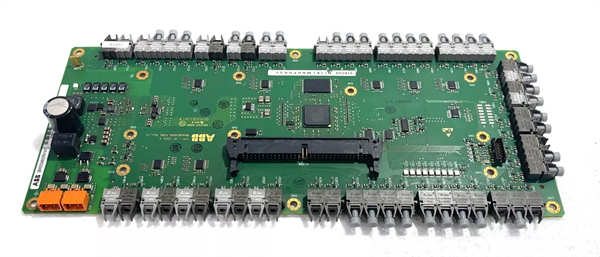

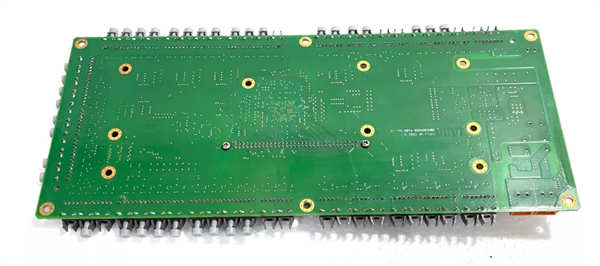

UFC912A101 3BHE039426R0101 ABB Control Board

Description

Detailed information organization of ABB UFC912A101 3BHE039426R0101 control board:

DESCRIPTION

ABB UFC912A101 3BHE039426R0101 is an industrial grade control board mainly used for real-time monitoring,signal processing,and logic control of equipment in automation systems.This module integrates high-performance processors,communication interfaces,and redundant design,supports multi protocol communication(such as Modbus,Profibus,Ethernet/IP,etc.),and is suitable for reliable control in complex industrial environments.Its design goal is to improve equipment efficiency,simplify system integration,and support remote diagnosis and maintenance.

UFC912A101 3BHE039426R0101 ABB

Product parameters

model:UFC912A101

Part number:3BHE039426R0101

Type:Control board(EOI board)

Rated voltage:24 V DC(±10%).

Input/output channels:16 digital inputs(DI)/8 digital outputs(DO).

Communication interfaces:RS485,Ethernet,CAN bus.

Protection level:IP20(specific model to be confirmed).

Working temperature:-40°C to+70°C(wide temperature design).

authentication:CE、UL、ATEX。

Product specifications

Technical architecture:Based on ARM Cortex-M4 processor,supporting real-time operating system(RTOS).

Storage capacity:Onboard 8 MB Flash+2 MB RAM,supports external SD card expansion.

Signal processing:Supports analog input(AI),high-speed counter(HSC),and PWM output.

Safety features:overvoltage and short circuit protection,fault self diagnosis,and LED status indication.

Scalability:Connect I/O modules or communication modules through the backplane bus.

series

Belonging to the ABB AC 800M industrial automation system control board product line,focusing on process control,discrete manufacturing,and energy management fields.

UFC912A101 3BHE039426R0101 ABB

characteristic

High reliability:Industrial grade component design,suitable for vibration,dust,and electromagnetic interference environments.

Flexible Expansion:Supports modular configuration and can add I/O or communication modules according to requirements.

Multi protocol support:Compatible with mainstream industrial communication protocols,easy to integrate with SCADA,PLC,or cloud platforms.

Remote maintenance:Supports remote programming and monitoring through a web interface or ABB engineering tools(such as Control Builder M).

Energy saving design:Low power mode,compliant with Energy Star standards.

role

Equipment control:Execute logical operations,sequence control,and motion control instructions.

Data collection:Real time reading of sensor data and uploading to the monitoring system.

Communication Hub:Realize bidirectional data exchange between on-site equipment and upper computer/cloud.

Security protection:Monitor equipment status,trigger alarms or emergency shutdowns to prevent the expansion of faults.

purpose

Industrial automation:production line control,robot collaboration,robotic arm motion control.

Energy management:smart grid monitoring,coordination of distributed energy systems.

Building automation:HVAC control,lighting management.

Transportation infrastructure:subway screen door control,airport luggage sorting system.

Environmental protection equipment:monitoring of sewage treatment plants,optimization of exhaust gas treatment systems.

UFC912A101 3BHE039426R0101 ABB

application area

Manufacturing industry:automotive production lines,electronic assembly lines,injection molding machine control.

Energy industry:wind farm monitoring,photovoltaic inverter management,energy storage systems.

Water treatment:pump station automation,water quality monitoring and treatment.

Transportation:Railway signal system,port crane control.

Municipal engineering:intelligent traffic lights,tunnel ventilation system.
